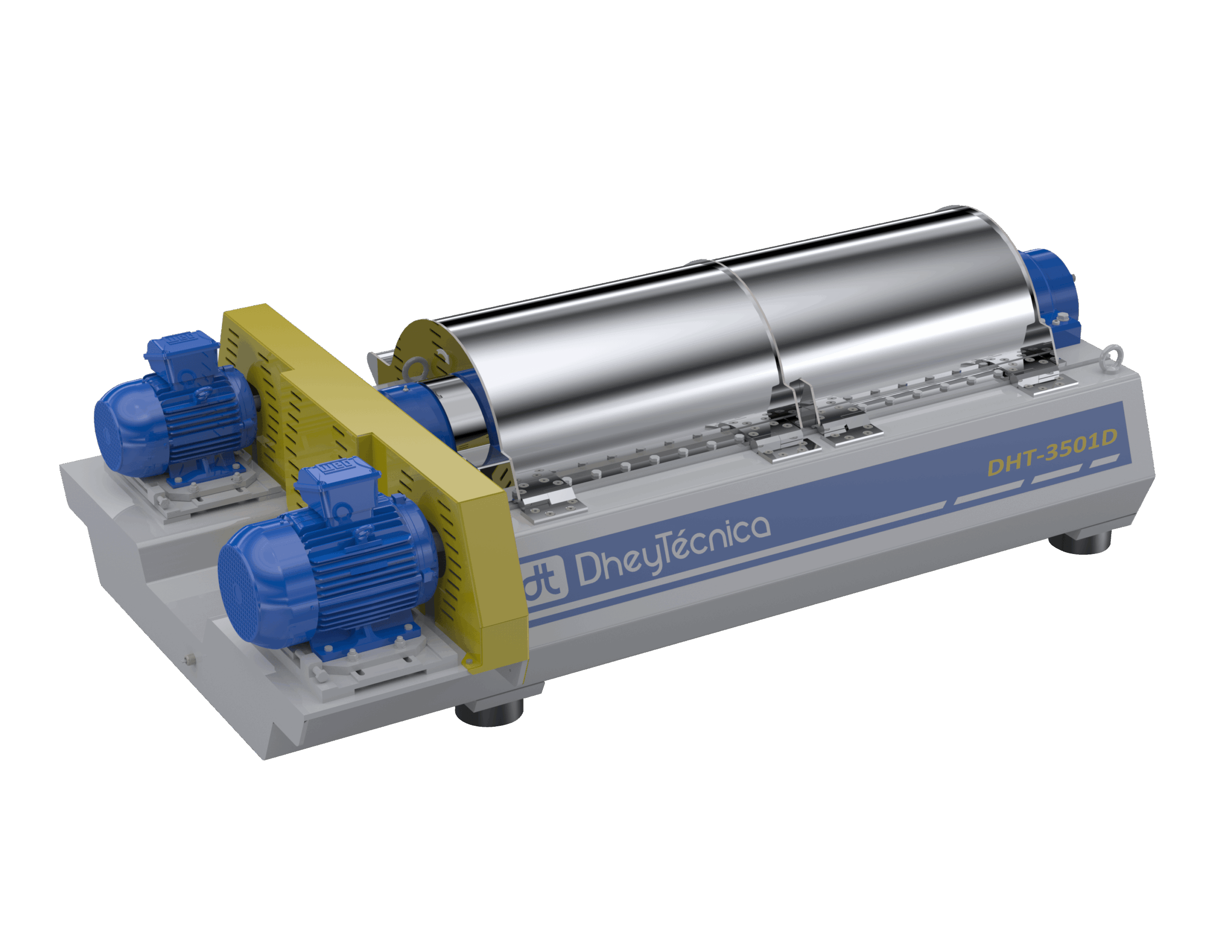

DheyTécnica’s Centrifugal Decanters  are used to separate of phases by difference in density (solids and liquids). The separation and clarification occurs by the performance of the centrifugal force generated through the progressive acceleration, at a speed defined for each application.

The equipment is used to separat of phases and clarification of a wide range of segments, each application demands a different configuration according to the type of product to be processed: density, viscosity, volume of solids, temperature.

Applications:

• Dehydration of primary and biological sludge;
• Clarification of liquids;
• Blood dehydration;
• Recovery of animal and vegetable oil;
• Recovery of starch, DDGS, gluten;
• Among

Back Drive

Automatic system for differential speed adjustment between screw and drum with the use of a secondary drive.

The differential speed between the screw and drum is automatically varied due to the increase in the mass load inside the equipment, which increases the flow of the secondary drive. Through a PID, the secondary drive performs the acceleration of the screw, discharging the volume of solids in a progressive way.

The reactive energy generated in the secondary drive will be recovered by the main drive connection system, providing savings of 15 to 20% in energy.

To obtain the best separation results, this equipment has additional accessories that can be incorporated into the equipment according to the demand of each project, which are:

• Panel with PLC;
• Speed sensors;
• Secondary engine (Back Drive);
• Speed Independent control of the screw;
• Recovery and saving energy;
• Retention disk;
• Automatic Lubrication System;
• Automatic Sanitation System;
• Vibration.
